Royal - Delux 35.75

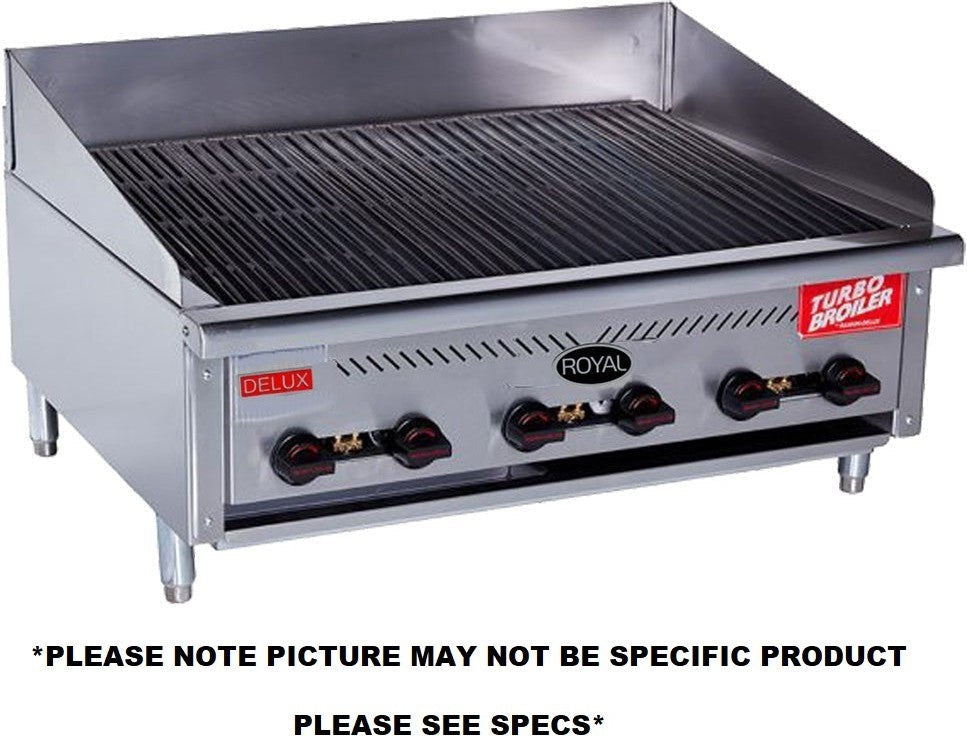

Royal - Delux 35.75" Stainless Steel Infrared Radiant Turbo Broiler with 66,000 BTU - TB-336

Royal - Delux 35.75" Stainless Steel Infrared Radiant Turbo Broiler with 66,000 BTU - TB-336

Model Number: CELC-TB-336

UPC: N/A

Royal
$9,789.99 Save $5,350.26
In stock & Ready to Ship

Free Shipping Insurance

Free Delivery Over $149*

Some exclusions apply for remote regions and large items.

Extended Holiday Returns

Price Match Guarantee

Have questions? Your phone number is never stored.

PDF Spec Sheet PDF Spec Sheet white

PDF Spec Sheet

NSF Certfied NSF Certfied

NSF Certfied

CSA Certified CSA Certified

CSA Certified

This product has been tested and has met the certification requirements for electrical, plumbing, and/or mechanical products.

Description

The Royal Delux Infrared Radiant Turbo Broiler, model TB-336 , is a powerful and versatile kitchen appliance designed to meet the demands of professional cooking.The Infrared Radiant Turbo Broiler is a versatile and powerful cooking appliance that combines cutting-edge technology with exceptional efficiency. This innovative kitchen tool is designed to cater to the needs of professional and home chefs alike.Its combination of cutting-edge technology, precise control, durability, and versatility makes it an indispensable tool for chefs and food enthusiasts looking to create outstanding dishes with precision and ease.TB-336

Standard Features:
  • Impressive Heating Power: TB-336 broiler, has Six heavy cast iron burners, with each burner delivering 11,000 BTU (British Thermal Units) per hour. This means that the total heating power of the TB-336 broiler is 66,000 BTU per hour, as there are four burners each providing 11,000 BTU/hr. This high heating power ensures intense and efficient cooking, making it suitable for various cooking tasks.
  • Advanced Radiant System: The broiler is equipped with easily removable, heavy gauge welded stainless steel radiant that produce infrared rays. This technology enhances cooking precision and flavor retention.
  • Customizable Cooking: Individual burner controls are spaced every 6 inches, allowing for precise control over the cooking process. This feature ensures that you can tailor the broiling to your specific needs.
  • Easy Maintenance: The appliance is designed for easy cleaning, with a full-width, removable stainless steel crumb pan that simplifies post-cooking cleanup. The broiler also includes a fully removable and replaceable independent firebox assembly.
  • Durable Construction: The TB-336 boasts a fully welded frame with a lifetime warranty, ensuring structural integrity. Stainless steel sides, a front valve cover, and ledge enhance both durability and aesthetics.
  • Versatile Grates: The broiler includes heavy-duty cast iron reversible top grates that can withstand high-temperature cooking and heavy use.
  • Safety and Ignition: Standing pilots provide instant and safe ignition, eliminating the need for extended preheating.
  • Adjustable Legs: The broiler features 4-inch high adjustable heavy-duty legs, ensuring stability and flexibility in your kitchen setup.
  • Extra Features: In addition to the core features, the TB-336 offers options and accessories, including fish grates, diamond grates, a stainless steel splash guard tapered to the front, a stainless steel equipment stand, and more.
  • Gas Connection: The appliance includes a 3/4” NPT gas connection on the right-hand rear, with a supplied pressure regulator to be connected by the installer.

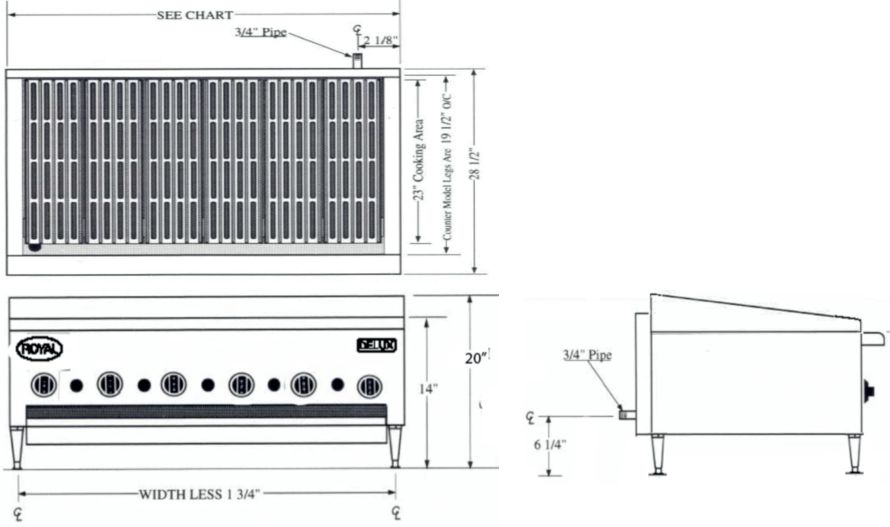

Specifications

Dimensions

Width

35.75"

Depth

23"

Broiling Grid

18” x 33”

Details

Shipping Weight

248 lbs

Gas Inlet Size

3/4"

Number of Burners

6

Material

Stainless Steel

Total BTU

66,000

Frame

Fully Welded

Interior/ Exterior

Stainless Steel

Insulation

1,200°F Mineral Wool Insulation.

Gas Pressure

10"W.C. Propane or 5"W.C Natural Gas

Model

TB-336

Item Condition

New

Warranty / Certifications

Warranty

2 Years Limited, Parts And Labor Warranty

Certification

CSA Certified

Certification

NSF Certified
