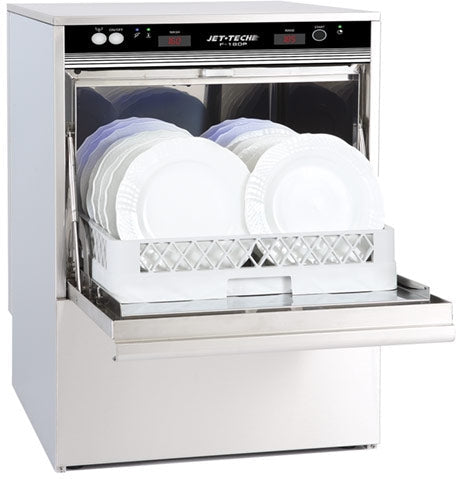

Jet-Tech - Undercounter Dishwasher - F-18DP

This Jet-Tech Dishwasher is an impressive undercounter cleaning machine designed to provide high-quality cleaning performance for busy commercial kitchens. Its dimensions measure 23-3/4"W x 23-3/4"D x 33-1/2"H, making it easy to fit in small spaces while still providing ample space for cleaning up to 24 racks per hour. Its high-temperature sanitizing system, which includes a built-in booster, ensures that dishes and glassware are thoroughly sanitized and free from harmful bacteria.

Constructed from durable stainless steel, this Jet-Tech Dishwasher is built to last and withstand the rigors of daily use. Its insulated top and side panels and double-wall construction help to maintain optimal temperatures and improve energy efficiency. The electric tank heat feature ensures that dishes are washed and sanitized at the correct temperature, further ensuring that dishes are hygienic and free of contaminants.

In addition to its efficiency and versatility, the Jet-Tech Dishwasher is also ENERGY STAR® certified, indicating that it meets strict energy efficiency guidelines set by the US Environmental Protection Agency. It is also cULus, cETLus, and CE certified, ensuring that it meets safety standards and regulations in different regions. Overall, the Jet-Tech Dishwasher is an excellent investment for businesses looking for a durable, efficient, and reliable cleaning solution that can keep up with their demands.

Construction Features:

• Body, external housing, wash tank, and all chassis components in brushed stainless steel 304 18/10
• Noise 58 dBa due to utilization of double-wall insulated panels
• Deep drawn inner wash chamber provide for maximum sanitation
• Upper and lower wash and rinse revolving arms constructed of stainless steel; easy to remove and clean without the need for tools
• Intergrated AISI 18/10 stainless steel booster with insulated lining
• Safety micro-switch on the door to interrupt wash pump action
• Independently-operated heating elements alternating between booster and wash tank
• Alternating heating resistors reducing maximum absorption thereby reducing energy costs
• Built for free standing installation with side and top panels of double-walled construction for low heat and noise emissions.
• Standard insulated top and side panels
• Entire wash tank area protected with perforated stainless steel scrap filters to facilitate maintenance
• Standard insulated top and side panels
• Wash pump protected with filter plus additional filter for overflow tube
• Door-opening with overall clearance of 10" (25 cm)
• Protective stainless steel shield for wash tank element
• Automatic fill and water level regulation of the wash tank
• Slide out integrated front control panel provides easy access for service
• Individual digital gauges for both wash and rinse temperatures
• Thermostatic control of wash and rinse temperatures ensure optimum results.
• Standard equipment includes: One open combination rack and one peg dish rack 19.75 × 19.75 (500 mm x 500 mm)

 Technical Features:

• Rack capacity: 19.75" x 19.75" (500 mm x 500 mm)
• Complete operating cycle: 145 seconds wash and 15 seconds rinse
• Wash tank capacity: 6.34 U.S. gallons (24 litres)
• Wash tank element: 2800 watts
• Wash temperature: 150°F (65°C)
• Booster capacity: 1.85 U.S. gallons (7.0 litres)
• Booster element: 4000 watts
• Booster (water) temperature: 185°F- 194°F (85°0 - 90°C)
• Power supply: 208-240/60/1
• Amperage: 23.5 amps
• Motor-pump: 1.0 H.P. with thermal overload protection
• Maximum power rating: 4850 watts
• Water consumption: 0.74 U.S. gallons per cycle (2.8 litres)
• Water consumption per hour: 24.1 U.S. gallons (91.2 litres max.)
• Water supply: 1/2" hot water supply 140°F / 60°C
• Recommended pressure: 30 p.s.i. (dynamic) (PRV may be required)
• Water inlet connection: 3/4" male hose connector (hose included)
• Drain connection: 1" ID (25.4mm) max height 36" (915mm) (hose included)
• Shipping weight: 165 lbs (75 kg)
