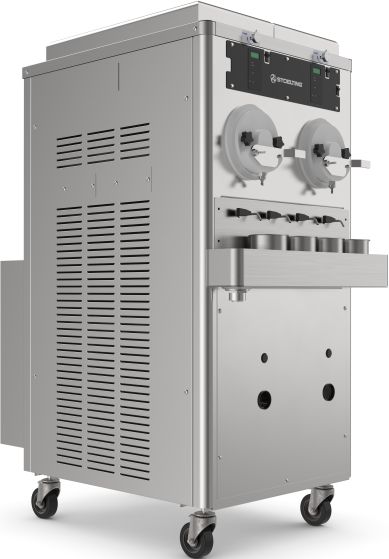

Stoelting - 208-240V 1-Phase Air-Cooled 3-Phase Double Barrel Continuous Flow Frozen Custard And Italian Ice Machine - M202-309B0FSIR
Model Number: AXOM-M202-309B0FSIR
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
NSF Certified
This product has met requirements for safety, quality, sustainability & performance standards set by the NSF group.
UIUS
Three Phase
This product requires three phase power, common in commercial establishments and restaurants.
208V
240V
Description
Serve up rich, frozen custard, or easily switch to refreshing Italian ices, with the double-barrel frozen custard and Italian ice continuous freezer. This 208- to 240-volt, air-cooled, 3-phase freezer features two 6-gallon, refrigerated, top-mounted hopper pans, which hold your mixes at a safe temperature for an extended period of time. Our patented Quick-Freeze Technology™ minimizes the amount of air and the size of ice crystals, delivering a smoother, more premium-finished product. The NSF-certified food-grade plastic blades provide quiet operation and superior durability, and the simple design allows for faster, easier cleaning and assembly.
Features:-
- 208- to 240-volt, air-cooled, 1-phase dipping cabinet with two compartments and a refrigerated condiment rail
- Precise, consistent dipping temperature, thanks to digital temperature control
- Container storage compartment holds two 4 ¼-gallon (16-liter) square buckets, ideal for scooping
- Removable cabinet covers allow easy access to the product
- Custom-designed for use with continuous-flow frozen custard and Italian ice machines
- Heavy-duty swivel casters allow you to easily move the cabinet
- Easy installation, cleaning and maintenance
- Low-environmental-impact, nontoxic refrigerant delivers excellent thermodynamic performance with zero Ozone Depletion Potential (ODP) and very low Global Warming Potential (GWP)
- Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product
- Thoroughly mixes variegates and particulates, unlike horizontal barrels
Specifications
Dimensions
Width
27.5"
Depth
40.37"
Height
59"
Details
Weight
383.3 Ib
Product Condition
New
Frequency
60HZ
Hardwired Connection
Yes
Maximum Overcurrent Protection Device (Per Barrel)
15
Minimum Circuit Ampacity (Per Barrel)
15
Phase
3
Plug Connection
No
Voltage
208-240
Output Capacity per Hour per Freezing Cylinder (GAL)
10
Refrigerant
R448A
Compressor Capacity (Btu/hr) per Compressor
6000
Number of Compressors
2
Cooling
Air
Number of Drive Motors
2
Drive Motor (hp)
2
Number of Hoppers
2
Number of Freezing Cylinders
2
Number of Freezing Cylinders
2
Air Flow || Self contained Units require 6" (15.2 cm) air space on sides and 24" (60.9 cm) at the back. They are charged with R-404A.
Air Flow || Self contained Units require 6" (15.2 cm) air space on sides and 24" (60.9 cm) at the back. They are charged with R-404A.
Hopper Capacity (L)
5.4
Hopper Capacity (L)
20.44
Total Hopper Capacity (GAL)
10.8
Total Hopper Capacity (L) || 40.88
Total Hopper Capacity (L) || 40.88
Freezing Cylinder Capacity (GAL)
0.9
Freezing Cylinder Capacity (L) || 3.41
Freezing Cylinder Capacity (L) || 3.41
