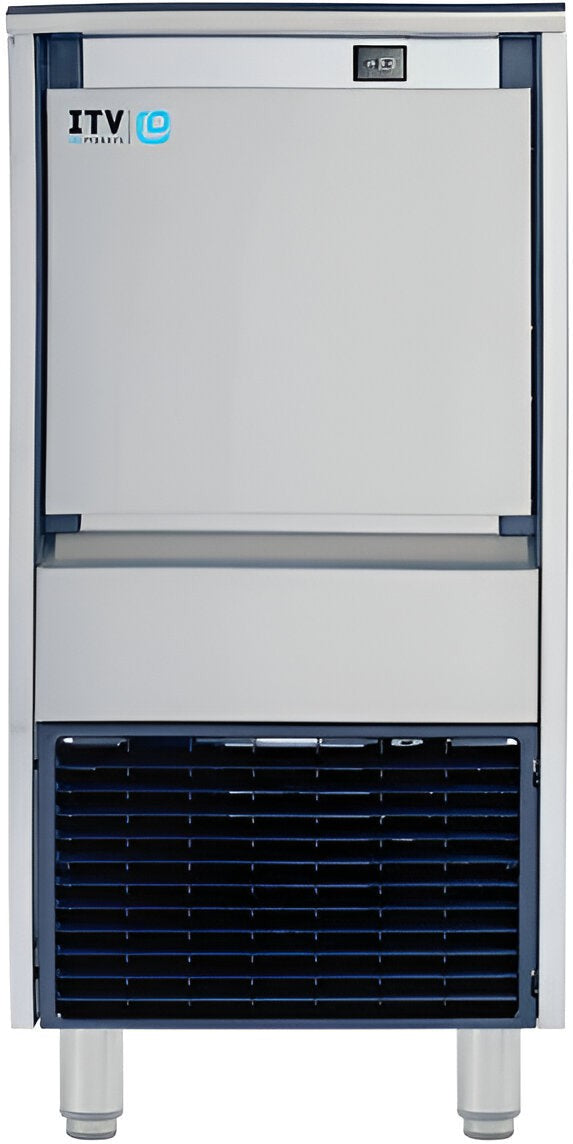

ITV Ice Makers - DELTA NG 120 Ice Cube Machine - DELTA 120 A

The ITV Ice Makers DELTA NG 120 Ice Cube Machine, is a top-of-the-line solution for producing solid gourmet crystal-clear ice cubes. This machine is equipped with innovative features to ensure optimal performance and ease of maintenance. The DELTA NG 120 features the A3S (Anti-Scale Spray System), a patented ITV spray system with flexible nozzles that prevent limescale deposits through small vibrations. Its STIF (Strong Inox Frame) construction, with a solid machine structure made of AISI 304 stainless steel, ensures durability and reliability. With the strongest door in the market, made of stainless steel and featuring a patented opening and damping system by ITV, the DELTA NG 120 is built for long-term use. Its front ventilation concept allows for built-in installation, while the cleaning switch enables the circulation of water with the descaling product without cooling. The "Never Stop" motor pump, developed by ITV, operates without seals, preventing deterioration in hard water. Additionally, the EASI (Easy Access for Service & Installation) design allows all panels to be disassembled separately, simplifying maintenance and installation processes.

Standard Features:

• NATURAL REFRIGERANT: Natural gas R290 with very low global warming potential which also reduces the energy consumption.
• SPRAY SYSTEM (NOZZLES): The spray nozzle, patented by ITV, does not allow calcareous scale build-up and produces solid, individual, transparent ice cubes which take longer to melt.
• DYNAMIC PRODUCTION: The water is constantly circulating and the ice gradually forms in thin layers, avoiding trapped gasses and producing crystal clear ice cubes. Only the purest of ice cubes are produced.
• SILENT RAIN: All parts in contact with water have been designed to minimize their friction resulting in a very low noise level.
• DUAL SWITCH: External switch allows to turn the machine on/off easily. Removing the top cover, we have the ice/ clean cycle switch on one side of the electrical box.
• STRONG INOX FRAME. 304 STAINLESS STEEL CONSTRUCTION: Box-type frame with stainless steel supports, makes the machine stronger and allows servicing operation without disassembling the entire machine.
• EASY ACCESS FOR SERVICE AND INSTALLATION: Designed to have better access to all components making installation and servicing operations easier. One person can disassemble the entire machine with a basic screwdriver.
• FRONT VENTILATION: Condensing unit permits 100% front ventilation, air inflow and outflow through the front grill. INSULATED STORAGE BIN: Storage bin with polyurethane foam insulation gives higher rigidity with lower heat transmission. Isolated but not refrigerated bins. Heavy duty door promotes longer ice storages, reducing melting.
• OPERATING LIMITS: Tropicalized machines (Class T); Suitable for low temperature environments of 41° (5°C) Air and Water and high temperature environments of 109ºF (43ºC) (Air), 95°F (35°C) (Water) Water pressure: Min. 10 psi. (0.7 bar.)/ Max. 85 psi. (6 bar.). NOTE: Install a pressure reducer if water inlet pressure is more than 85 psi. (6 bar.).
• ELECTRICAL SPECIFICATIONS: 115V/60Hz./1 - Fuse Size 15-20 - Nema Plug Type 5-15P. Also available 208-230V/60Hz.- 220V/50Hz. NG 355—208-230V/60Hz./1. Also available 220V/50Hz. (Special order).
• WARRANTY: 36 months parts and labor + 24 additional months parts on both compressor and evaporator

Key Features:

• Produces solid gourmet crystal-clear ice cubes
• A3S (Anti-Scale Spray System) prevents limescale deposits
• STIF (Strong Inox Frame) for durability
• Strongest door in the market with patented opening and damping system
• Front ventilation concept for built-in installation
• Cleaning switch for easy maintenance
• "Never Stop" motor pump prevents deterioration in hard water
• EASI (Easy Access for Service & Installation) design
• On/off lighted rocker switch on the front panel
• Tropicalized design suitable for tropical climates
• Height adjustable legs (from 105mm to 155mm)
