ITV Ice Makers - IQN 900 Modular Nugget Ice Machine - IQN 900 A
Model Number: GBS-10502UN
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
Description

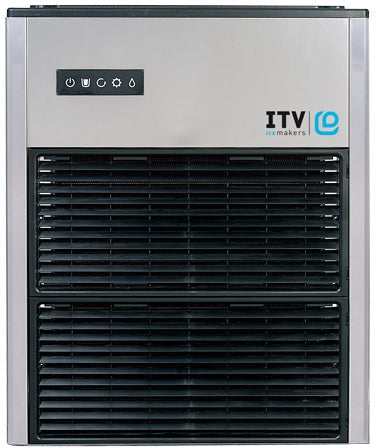

The ITV Ice Makers IQN 900 Modular Nugget Ice Machine, part of the Ice Queen N range. This machine produces ice nuggets, perfect for blends, as it gently mixes the flavors of the drink without watering it down. The nugget ice has a moisture content of 10% and a compact texture, allowing it to keep drinks cold for longer. Its shape, halfway between an ice cube and crushed ice, is uniformly cut. It is hard on the inside and soft on the outside, making it perfect for various applications such as cooling fruit juices or yogurts at food exhibitions. The Ice Queen N range features a high-efficiency evaporator, reducing energy consumption while increasing ice production. It also includes a self-diagnosis system with signaling LEDs to indicate machine operation and alert to possible faults for quick response. Constructed with AISI 304 stainless steel, the machine ensures durability and hygiene. Additionally, it features an on/off button for user convenience. Experience the new trend in hospitality with the ITV Ice Makers IQN 900 Modular Nugget Ice Machine. Enjoy crunchy ice that enhances the drink experience in any leisure environment or select establishment.
Standard Features:
-
TRONG MECHANICS: ITV’s unique mechanical design is simple, strong and reliable. It will provide a longer life to your
flaker, and shorten service times and costs; features oversized gearbox. - SECURITY CONTROLS: The machine is protected to avoid failures caused by gearbox motor temperature, water level, or ice level, includes a defrost time delay.
- EASY ACCESS FOR SERVICE AND INSTALLATION: Designed to have better access to all components making installation and servicing operations easier. One person can disassemble the entire machine with a basic screwdriver.
- OPERATING LIMITS: Tropicalized machines (Class T); Suitable for low temperature environments of 41° (5°C) Air and Water and high temperature environments of 109ºF (43ºC) (Air), 95°F (35°C) (Water) Water pressure: Min. 10 psi. (0.7 bar.)/ Max. 85 psi. (6 bar.)
- NOTE: Install a pressure reducer if water inlet pressure is more than 85 psi. (6 bar.).
- WARRANTY: 36 months parts and labor + 24 additional months parts on compressor, and 24 months parts on auger.
- HEALTHCARE & RESEARCH: Hospitals, Laboratories, Universities.
- SPORTS: Football, Basketball, Baseball, Athletics, Swimming, Soccer, Track & Field, Gymnastics, Traumas, Pre and Post Training, Spas, Sports Medical Facilities. Rest + Ice + Compression + Elevation = First Aid Method.
- DRINKS: Soft drinks, Smoothies
Key Features:
- ITV’s unique mechanical design is simple, strong, and reliable, providing a longer life to your flaker. Features an oversized gearbox.
- Protected against failures caused by gearbox motor temperature, water level, or ice level. Includes a defrost time delay.
- Designed for better access to all components, making installation and servicing operations easier. One person can disassemble the entire machine with a basic screwdriver.
- Tropicalized machines suitable for low and high-temperature environments. Water pressure: Min. 10 psi. / Max. 85 psi. Install a pressure reducer if water inlet pressure is more than 85 psi.
- Warranty: 36 months parts and labor + 24 additional months parts on compressor, and 24 months parts on auger.
- Suitable for healthcare, research, sports facilities, and soft drinks/smoothie preparation.
Specifications
Dimensions
Width
22"
Depth
24.49"
Height
28.03"
Details
Weight
205 lb
Material
Stainless Steel
Daily Production Lbs./ Kg (70°F - 50°F 90°F - 70°F)
870/395
Daily Production Lbs./ Kg (20°C - 10°C 32°C - 21°C)
705/320
Cubes Style
Nugget
Water Usage (Gal./100Lbs. / L./Hr 90°F - 70°F)
11.99/13.5
Voltage
115 V
Amp
10.5
Hz
60
Phase
1
Warranty / Certifications
Warranty
3 Years Parts And Labor
Certifications
NSF Certified
Certifications
ETL Certified
