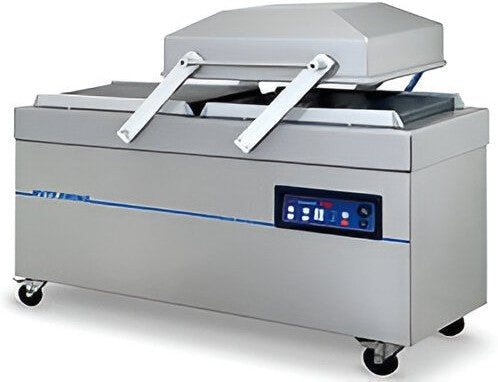

MiniPack - 200-240V Double Chamber Swing Lid Left & Right Seal Vacuum Sealer - MV840LRTSEAL
Model Number: GBS-MV840LRTSEAL
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
Description
The Minipack Double Chamber Swing Lid L&R seal Vacuum Sealer is a reliable and durable model designed for heavy-duty use in food and beverage industries, combining simplicity with robust functionality. The Minipack Double Chamber Swing Lid L&R seal Vacuum Sealer is designed to meet the rigorous demands of commercial food packaging operations, offering efficient vacuum sealing with advanced features and durable construction.
Key Features:
Chamber & Seal Bars:
-
- Chamber Dimensions: 27.00" x 35.00" x 10.00"
-
Number of Seal Bars: 2 lid-mounted seal bars
- Front & Back Seal Bars:
- Position: Front & Back
- Length: 2 x 24.50"
- Distance between: 29.50"

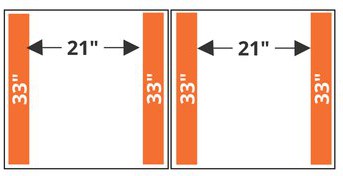

- Left & Right Seal Bars:
- Position: Left & Right
- Length: 2 x 33.00"
- Distance between: 21.00"
- Front & Back Seal Bars:
- Quick Change Seal Bars with Independent Power to each Seal Bar
Performance:
-
- Pump Type: Busch R5 Oil Rotary
- Cycles per Minute: Up to 3
-
Free Air Displacement:
- @ 50Hz: 160 m³/h
- @ 60Hz: 190 m³/h
- Pump Power Rating: 8 hp
- Power Supply: 200-240V / 3ph / 38A
Display & Controls:
-
- Water Resistant Digital Display (IP65)
- Selectable Control (Time or %)
- Electronic Millibar Sensor
- Customizable Programs: 9
Operational Features:
-
- Programmable Sealbar Pre-Heat
- Programmable Sealing Time
- Gentle Air Return
- Gas Plus Program (pouch ballooning)
- Extra Vacuum (30 sec)
- Fast & Hygienic Lid Evacuation
- High Volume Density Plates for efficient packaging
Service:
-
- Pump Conditioning
- Self Diagnostic
- Indicating Display
- Toolless Valve Replacement
- Programmable Service Reminder
- 1 Year Limited Warranty, 2nd Year Conditional Warranty (VP Program)
Housing & Dimensions:
-
- Material: Stainless 304
- Lid Type / Lid Spring Alignment: Swing Lid / Horizontal
- Width x Length: 58.75" x 38.75"
- Height (Lid open/closed): 53.00" / 43.00"
- Working Height: 33"
- Locking Casters for mobility
- Shipping Weight: 1480 lbs
Specifications
Dimensions
Length
51"
Width
65"
Height
54"
Details
Weight
1480 lbs
Seal Bars
2
Chamber Width x Length
27.00" x 35.00"
Chamber Height
10.00"
Position of Seal Bars
L & R
Seal Bar Length
2 x 24.50"
Distance between Seal Bars
29.50"
Pump Type
Busch R5 Oil Rotary
Cycles Per Minute
up to 3
Pump Power Rating
8 hp
Voltage
200-240V
Product Type
Vacuum Sealers
Warranty / Certifications
Warranty
1 Year Limited Warranty
Reviews
MiniPack is shipped free across Canada on orders over $149. Minipack is highly specialized in packaging machines, from the most economical unit to the most sophisticated fully automatic units.
