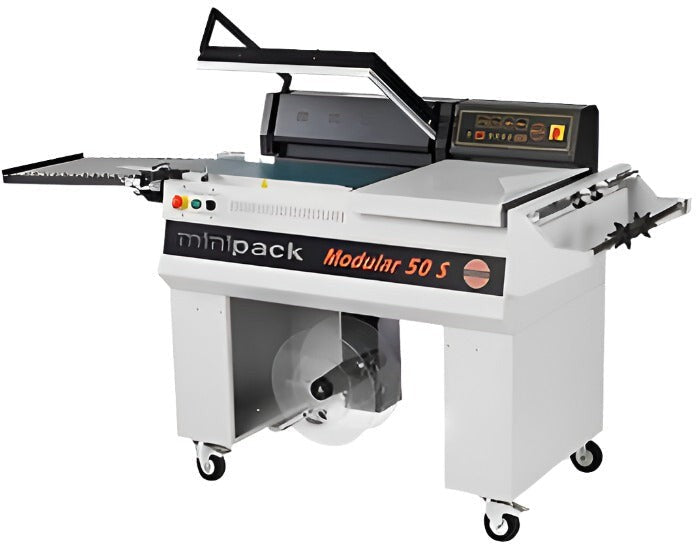

MiniPack - 208V, 22" x 16" x 9" Semi-Automatic Shrink Wrapper Machine - Modular 50

The Modular 50 Semi-Automatic Shrink Wrapper is a reliable and efficient packaging solution, designed to handle a variety of products with precision and ease. Ideal for users who require a dependable shrink wrapping machine that combines simplicity with high performance. The Minipack 22" x 16" x 9" Semi-Automatic Shrink Wrapper offers a perfect balance of durability, functionality, and ease of use, making it an excellent choice for businesses seeking efficient and reliable packaging solutions.

Key Features:

Sealing Area:

• • Maximum Product Size: 22" x 16" x 9" (W x L x H)
  • Center Folded Film Types: Polyolefin / PVC
  • Maximum Roll Width: 24"
  • Maximum Roll Diameter: 10"
  • Adjustable Product Height
  • Programmable Seal Arm Opener
  • Teflon Coated Sealing Blade
  • Programmable Sealing Blade Temperature

Performance:

• • Wraps per Minute: 12-16 items
  • External Pneumatic Seal Pressure Required: No
  • Power Supply: 208V / 3ph / 11A

Display & Controls:

• • Water Resistant LED Display
  • Digital Controls
  • Customizable Programs: 6

Operational Features:

• • Machine Type: Semi-Automatic
  • Automatic Process: Seal»Cut»Release»Advance
  • Sealing Blade Heat: Impulse
  • Precision Blade Cooling System: Coolant Fluid
  • Sealing Activation Modes: Timer / Push Button / Foot Pedal (optional)
  • Automatic Seal Arm Closure
  • Auto-Discharge Conveyor
  • Conveyor Belt Modes: Continuous / Step-Advance
  • Programmable Conveyor Speed
  • Automatic Waste Winder
  • Tearless Perforation System
  • Overheat Safety Circuit
  • Patented Safety System

Service:

• • Easy Frontal Access
  • Indicating Display
  • Error Codes
  • 1 Year Limited Warranty

Housing & Dimensions:

• • Material: Steel / Baked Enamel
  • Dimensions: 63" x 30" (W x L)
  • Height (Lid open/closed): 55" / 44"
  • Working Height: 34"
  • Locking Casters
  • Weight (Net/Shipping): 332lbs / 398lbs
