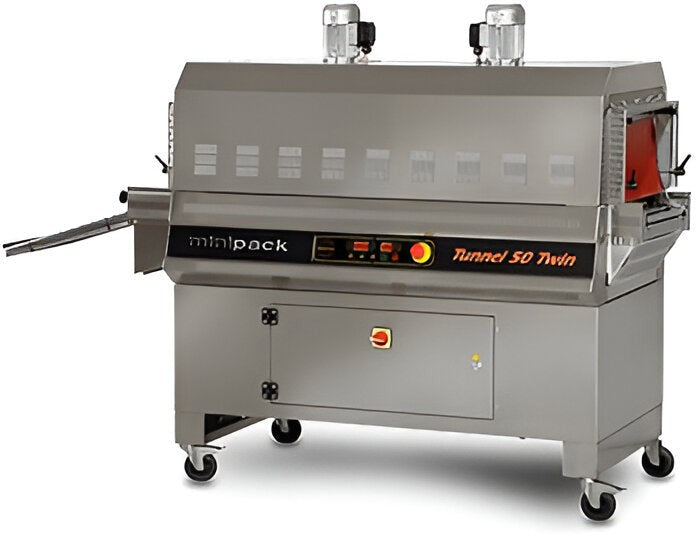

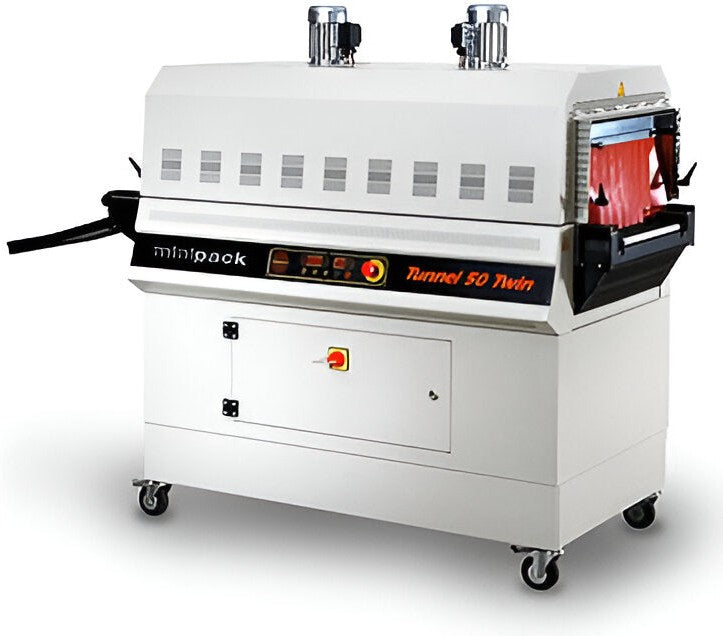

MiniPack - 208V, 44.75" Dual-chamber Twin Tunnel Heating System - Tunnel50T
Model Number: GBS-Tunnel50T
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
Description
The TUNNEL 50 TWIN is an advanced solution designed for high-speed and efficient shrink-wrapping of small products, offering exceptional technical and aesthetic results. Featuring dual heating chambers, precise heating regulation, superior thermal insulation, and adjustable airflow control, this shrink tunnel ensures maximum efficacy in packaging applications. The Minipack - 44.75" Twin Tunnel Heating System is engineered for precision and efficiency, making it an ideal choice for businesses seeking to optimize their shrink packaging processes with high-speed and reliable performance.
Key Features:
Heating Area:
-
- Tunnel Inlet: 15.75" x 7.5"H
- Tunnel Length: 44.75"
- Shrink Film Types: All
Performance:
-
- Tunnel Heater Wattage: 14KW
- Power Supply: 208V / 3ph / 35A
Display & Controls:
-
- Water Resistant LED Display
- Digital Display
- Customizable Programs: 9
Operational Features:
-
- Programmable Conveyor Speed
- Adjustable Air Flow
- Automatic Cool-Down
- Adjustable Conveyor Height
- Self-Rotating Conveyor Rolls
- Double-Insulated Walls
- Exit Roll Conveyor: 18”
Service:
-
- Easy Frontal Access
- Indicating Display
- Error Codes
- 1 Year Limited Warranty
Housing & Dimensions:
-
- Material: Steel / Baked Enamel or Stainless Steel
- Machine Size (W x L x H): 67.91" x 31.5" x 60.43"
- Working Height: 34"
- Locking Casters
- Weight (Net/Shipping): 572lbs / 701lbs
Specifications
Dimensions
Length
31.5"
Width
67.91"
Height
60.43"
Details
Weight
701 lbs
Tunnel Inlet
15.75" x 7.5"H
Tunnel Length
44.75"
Shrink Film Types
All
Voltage
208V
Product Type
Tunnel Heating System
Warranty / Certifications
Warranty
1 Year Limited Warranty
Reviews
MiniPack is shipped free across Canada on orders over $149. Minipack is highly specialized in packaging machines, from the most economical unit to the most sophisticated fully automatic units.
