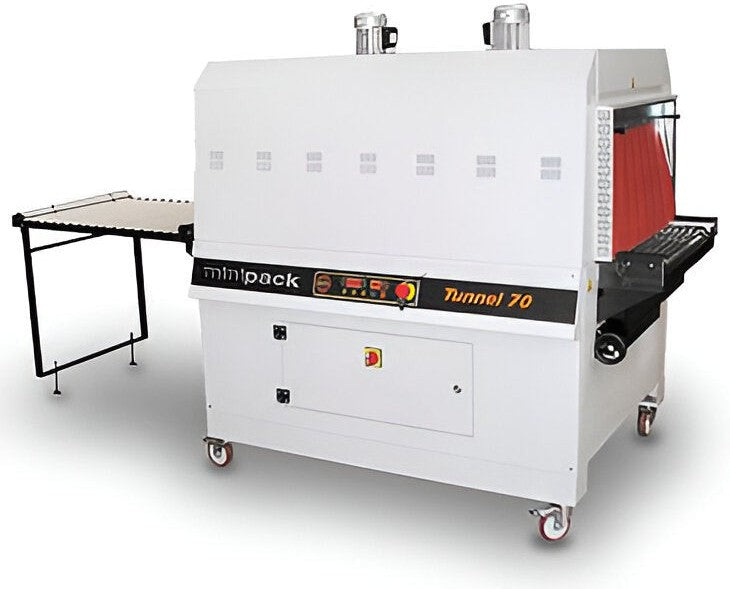

MiniPack - 208V, 47" Tunnel Heating System - Tunnel 70
Model Number: GBS-Tunnel 70
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
Description
The Tunnel 70 Heating System by Minipack is engineered for high-efficiency shrink wrapping of various products, providing exceptional technical capabilities and reliability. The Minipack - 47" Tunnel Heating System is designed to meet the rigorous demands of industrial shrink wrapping applications, ensuring efficient operation and durability. Ideal for businesses looking to enhance packaging efficiency and product presentation.
Key Features:
Heating Area:
-
- Tunnel Inlet: 25.5" x 13.75"H
- Tunnel Length: 47"
- Shrink Film Types: All
Performance:
-
- Tunnel Heater Wattage: 14KW
- Power Supply: 208V / 3ph / 35A
Display & Controls:
-
- Water Resistant LED Display
- Digital Display
- Customizable Programs: 9
Operational Features:
-
- Programmable Conveyor Speed
- Adjustable Air Flow
- Automatic Cool-Down
- Adjustable Conveyor Height
- Self-Rotating Conveyor Rolls
- Double-Insulated Walls
- Exit Roll Conveyor: 18”
Service:
-
- Easy Frontal Access
- Indicating Display
- Error Codes
- 1 Year Limited Warranty
Housing & Dimensions:
-
- Material: Steel / Baked Enamel
- Machine Size (W x L x H): 71.65" x 47.24" x 64.57"
- Working Height: 34"
- Locking Casters
- Weight (Net/Shipping): 913lbs / 1065lbs
Specifications
Dimensions
Length
31.5"
Width
67.91"
Height
60.43"
Details
Weight
701 lbs
Tunnel Inlet
25.5" x 13.75"H
Tunnel Length
47"
Shrink Film Types
All
Voltage
208V
Product Type
Tunnel Heating System
Warranty / Certifications
Warranty
1 Year Limited Warranty
Reviews
MiniPack is shipped free across Canada on orders over $149. Minipack is highly specialized in packaging machines, from the most economical unit to the most sophisticated fully automatic units.
