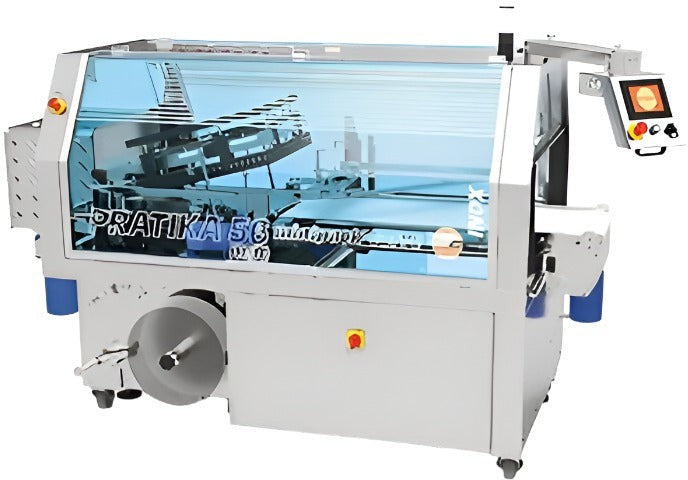

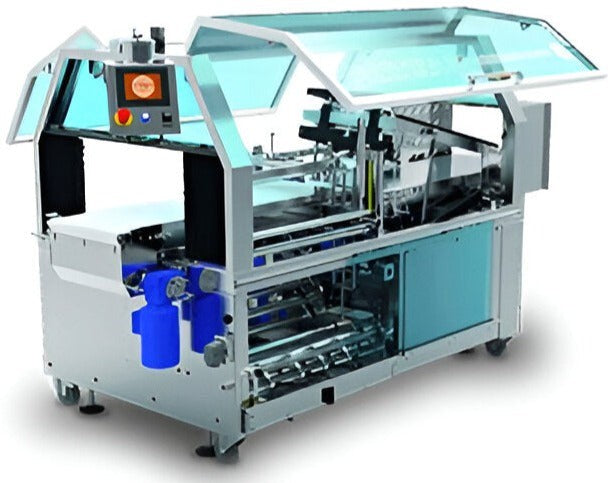

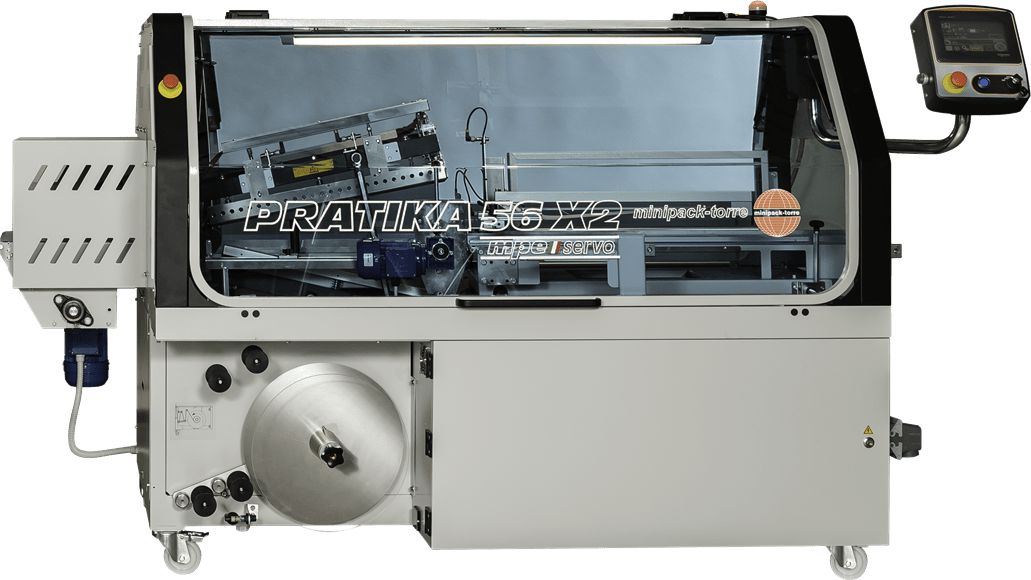

MiniPack - 230V Grey Automatic Heat Shrink Wrapper Machine with Double Hatch - Pratika 56 MPE X2
Model Number: GBS-Pratika 56 MPE X2
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
Description
The 56 MPE Grey Automatic Shrink Wrapper is designed for high-performance shrink wrapping of various products, offering versatility and efficiency in packaging operations. This automatic shrink wrapper is ideal for industrial and commercial applications where high throughput, reliability, and ease of use are essential for packaging operations.
Key Features:
Sealing Area:
- Maximum Product Height: 9.45"
- Maximum Product Length: 21.75"
- Center Folded Film Types: Supports any film type
- Maximum Roll Width: 28"
- Maximum Roll Diameter: 12"
- Adjustable Product Height
- Teflon Coated Sealing Blade
- Programmable Sealing Blade Temperature
Performance:
- Wraps per Minute: 30-50 items
- External Pneumatic Seal Pressure Required: No
- AC Servo Motor Driver
- Power Supply: 230V / 1ph / 13A
Display & Controls:
- Water Resistant Digital Display: Touch Screen
- Control Board: PLC Schneider®
- User-Settable Programs: Unlimited
Operational Features:
- Machine Type: Automatic L-Sealer
- Sealing Technology: Center Sealer
- Motors: Non-pneumatic Servo Motors
- Access: Two Gull-Wing Doors for Easy Access
- Controls: Large Touch Screen Control Panel
- Belt: Food-Approved Belting
- Automatic Operation: Seal»Cut»Release»Advance
- Sealing Blade Heat: Constant
- Photo Cell Activation
- Auto-Entry Conveyor
- Auto-Discharge Conveyor
- Conveyor Belt Modes: Continuous / Step-Advance
- Programmable Conveyor Speed
- Small Product Kissing Belt
- Overheat Safety Circuit
- Automatic Waste Winder
- No Moving Parts Exposed
- Tearless Perforation System
- Patented Safety System
Service:
- Easy Frontal Access
- Indicating Display
- Operating/Running/Problem Light
- Error Codes
- 1 Year Limited Warranty
Housing & Dimensions:
- Material: Steel / Baked Enamel
- Width x Length: 97.75" x 49"
- Height (Lid open/closed): 77" / 68"
- Working Height: 34"
- Locking Casters
- Shipping Weight: 1540 lbs
Specifications
Dimensions
Length
49"
Width
97.75"
Height
68"
Details
Weight
1540 lbs
Maximum Product Height
9.45"
Maximum Product Length
21.75"
Center Folded Film Types
Supports any film type
Wraps Per Minute
30-50 items
Voltage
230V
Product Type
Shrink Wrapper
MAX Power Installed
2,5 kW
Maximum Current
11 A
Hourly Output (Based on The Measurement of The Product And The Film Used)
0-3600 p/h
Available Dimensions of The Sealing Bars
600x400 mm
MAX Product Size (The Maximum Measurements Cannot Be Used At The Same Time)
600x400x240 mm
Warranty / Certifications
Warranty
1 Year Limited Warranty
